UC50MPA

    • 5 MP resolution with 1/4" CMOS image sensor
    • USB compliance, Plug & Play - UVC compliant
    • MJPEG & YUV2 streaming, supports 2592x1944 up to 15fps
    • Unique serial number assigned upon request
    • Auto focus version available, Fully customizable

Overview

Spinel low cost 5MP USB 2.0 Camera module. Resolution 2592 x 1944. IR-Cut Filter available at 650nm, 850nm & 940nm.

Specification

Options Standard Custom Options
Image Sensor 1/4" CMOS -----
Pixel Size 1.4um x 1.4um -----
Resolution 5 MP 2592(H) x 1944(V) -----
Shutter Type Electronic rolling shutter -----
Protocol & Connection Plug-&-Play (UVC compliant) -----
Frame Rate 320X240 MJPEG @15fps YUV2 @ 30fps 640X480 MJPEG @15fps YUV2 @ 30fps 1024X720 MJPEG @30fps YUV2 @ 5fps 1024X960 MJPEG @15fps YUV2 @ 5fps 1600x1200 MJPEG @15fps YUV2 @ 5fps 1980x1080 MJPEG @30fps YUV2 @ 5fps 2048x1536 MJPEG @15fps YUV2 @ 3fps 2592x1944 MJPEG @15fps YUV2 @ 2fps -----
Focus Manually adjustable Auto-focus
Lens Default 3.6mm lens for H.FOV 60 degree M12 1.7mm, 2.0mm, 2.8mm, 6mm, 8mm, 12mm, 16mm, 70 degree Non-distortion Lens, 185 Degree circular Fisheye, CS 2.8mm, 4mm, 6mm, 8mm, 16mm, 25mm lens and others upon request
Minimum Illumination 0.1 Lux -----
IR-Cut Filter (IR Filter) Default at 650nm 850nm or 940nm
Night Vision Supported with use of IR Lens and IR illuminator -----
Power Supply 4P PH 2.0mm socket, USB BUS Power -----
Supported OS Win XP /Vista /Win7 /Win8 /Win10 Linux with UVC (Linux-2.6.26 or later) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or higher with UVC -----
Controllable Features Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight contrast, Exposure -----
Power Consumption DC5V (±5%), 150~200mA -----
Operating Temp. -4°F ~ 167°F (-20°C ~ +75°C) -----
Storage Temp. -40°F ~ 185°F (-40°C ~ +125°C) -----
Dimension 32mm x 32mm -----
Weight Approx. 12g (0.4 ounce) -----
Audio Supported when Microphone is equipped on board -----

Download

Examples

Photos

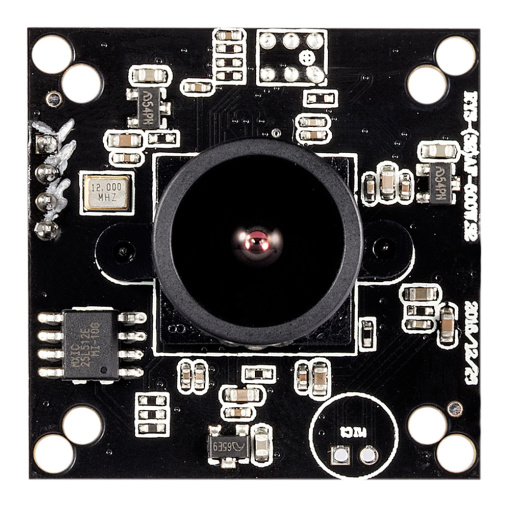

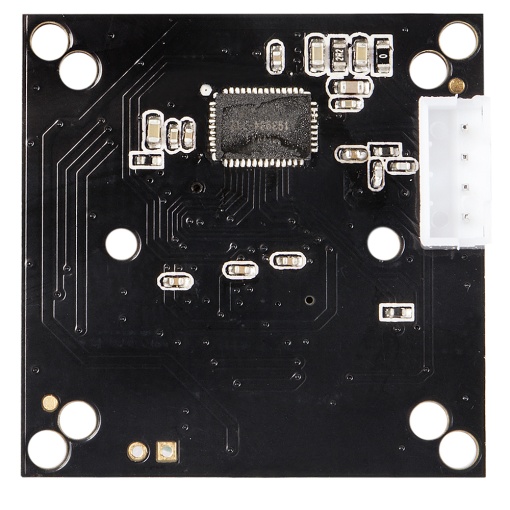

UC50MPA
