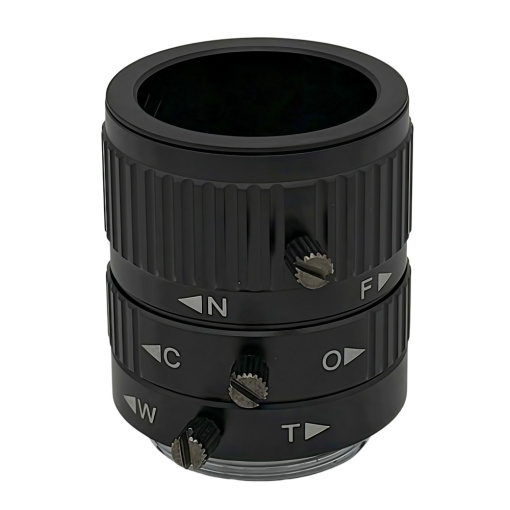

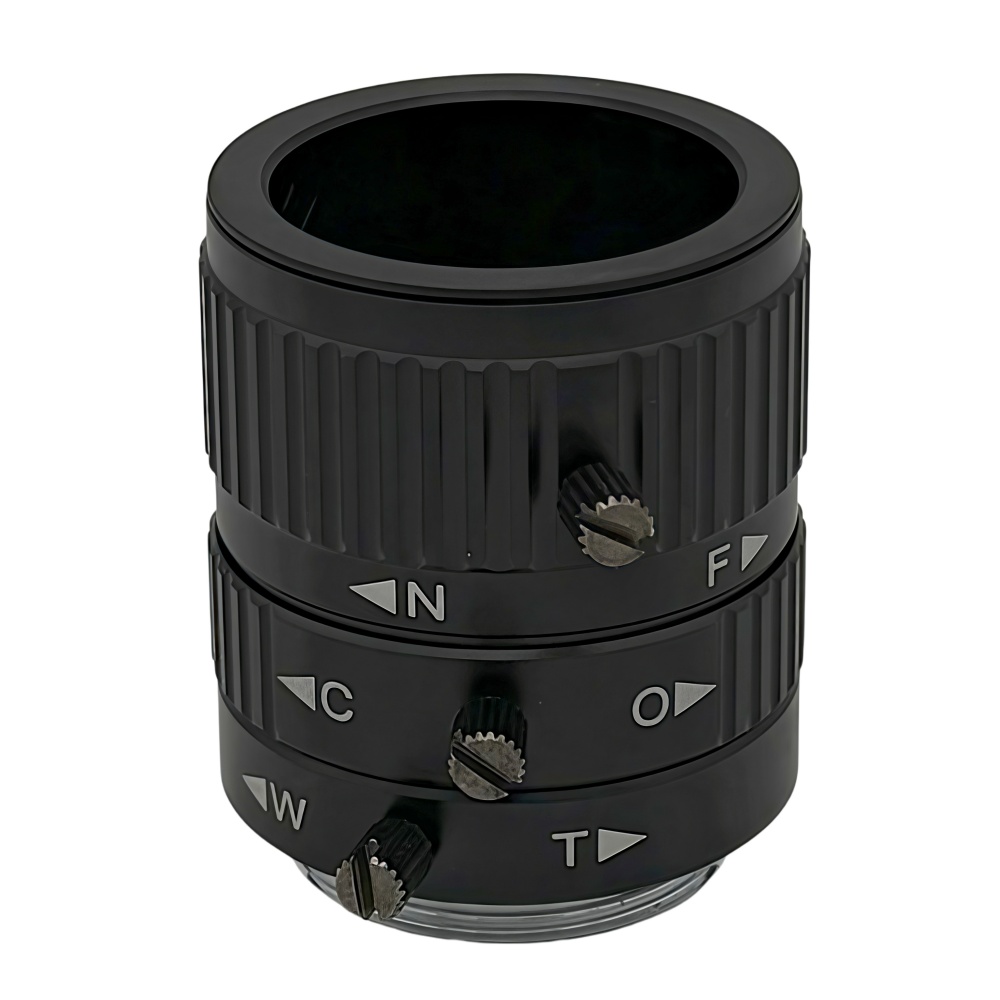

CS Mount, Vari-focal 2.8-12mm, 5MP, F1.4, 1/2.7’’
$49.00
CS Mount, Vari-focal 2.8-12mm, 5MP, F1.4, 1/2.7’’, with or without IR filter
| Resolution: | 5MP |
| Image Format: | 1/2.7″ |
| Focal length (mm): | 2.8-12mm |
| Aperture: | F1.4 |
| Mount Type: | CS mount |
| Focus range: | 30cm~INF |
| Field of View (FOV): | 1/2.7”: D130.5°x H96.5°x D68.5°(Short focus) D39.14°x H31.3°x D23.8°(Long focus) |
| 1/3”: D112.8° x H85°x D61.4°(Short focus) D35.6° x H28.5° x D25.8°(Long focus) | |
| 1/4”: D69.1° x H54°x D40.5°(Short focus) D23.8° x H19° x D14.1°(Long focus) | |
| IR-cut Filter: | 650nm IR Filter |
| TV distortion: | -56.63%～-4.16%(1/2.7″) |
| Total Track Length(TTL): | 51.7mm |
| Back focal length: | 7.15mm～13.05mm(in air) |
| Dimension (mm): | Φ32×44.8mm |
| Structure: | 5G |
| Weight (g): | 30±2g |
| Operating Temp.: | -20°C~+60°C |
| Focus: | Manual |
| Zoom: | Manual |
| IRIS: | Manual |
| Weight | 4 oz |
|---|---|
| IR CUT Filter | 650nm, NO IR filter |
