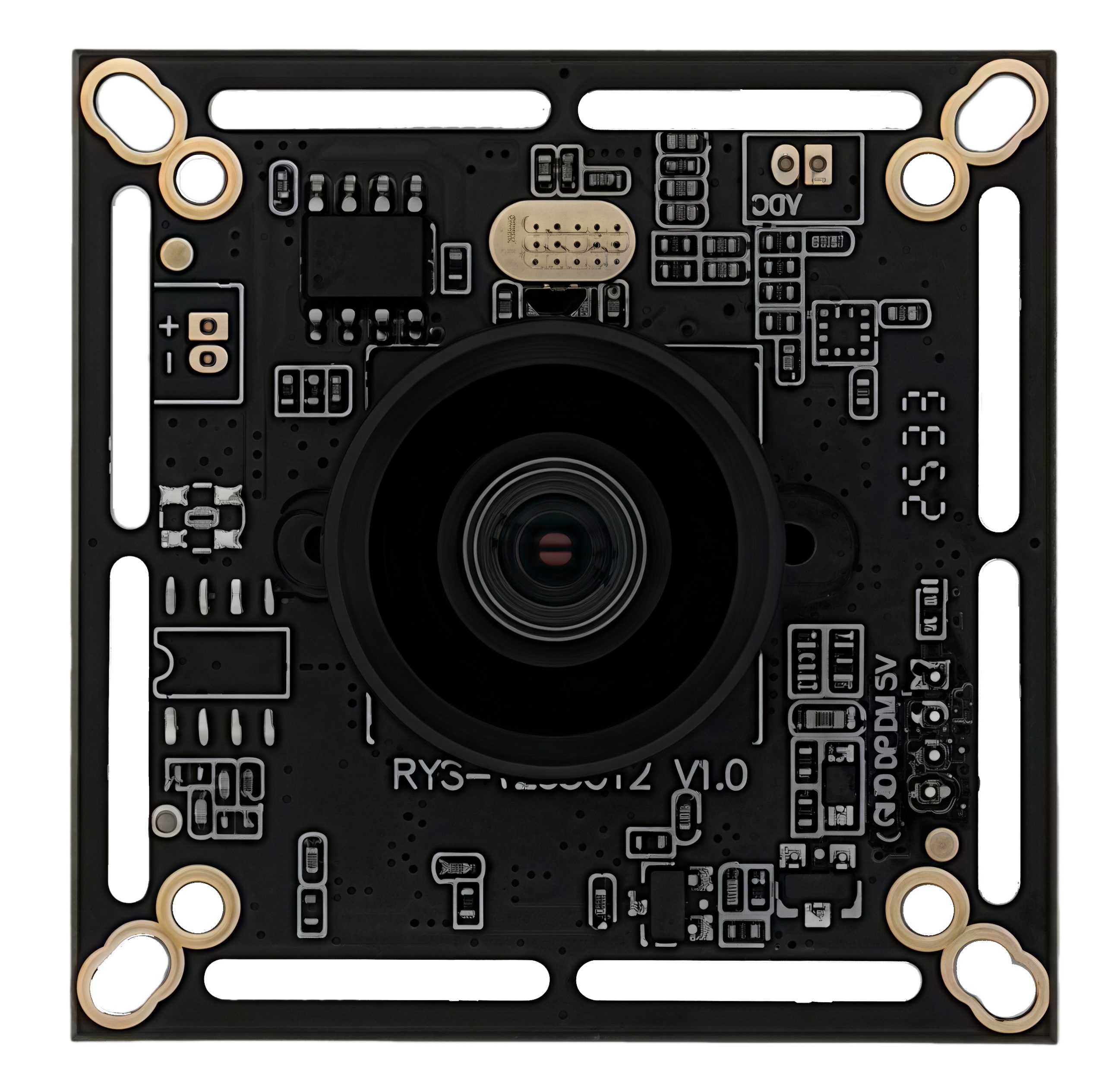

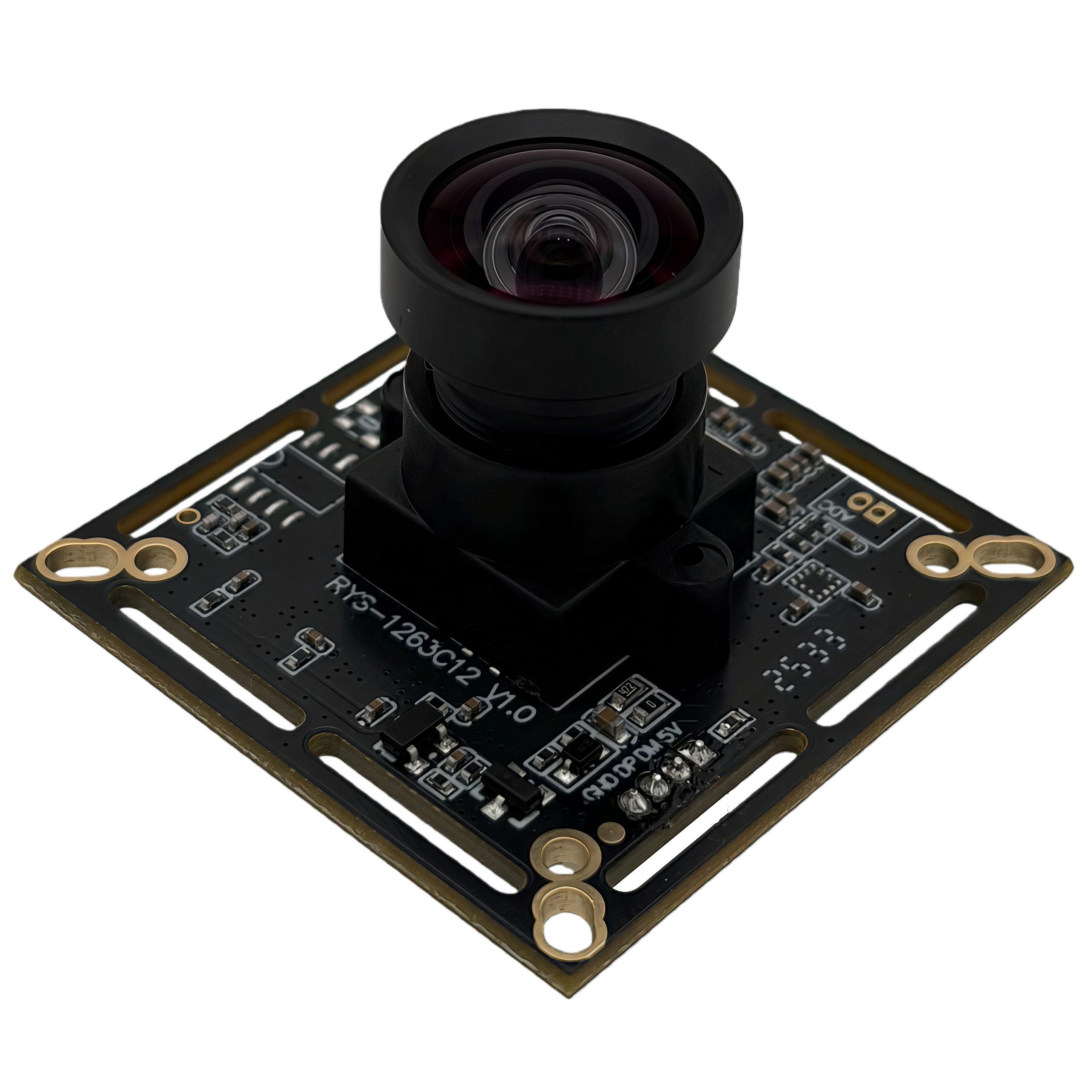

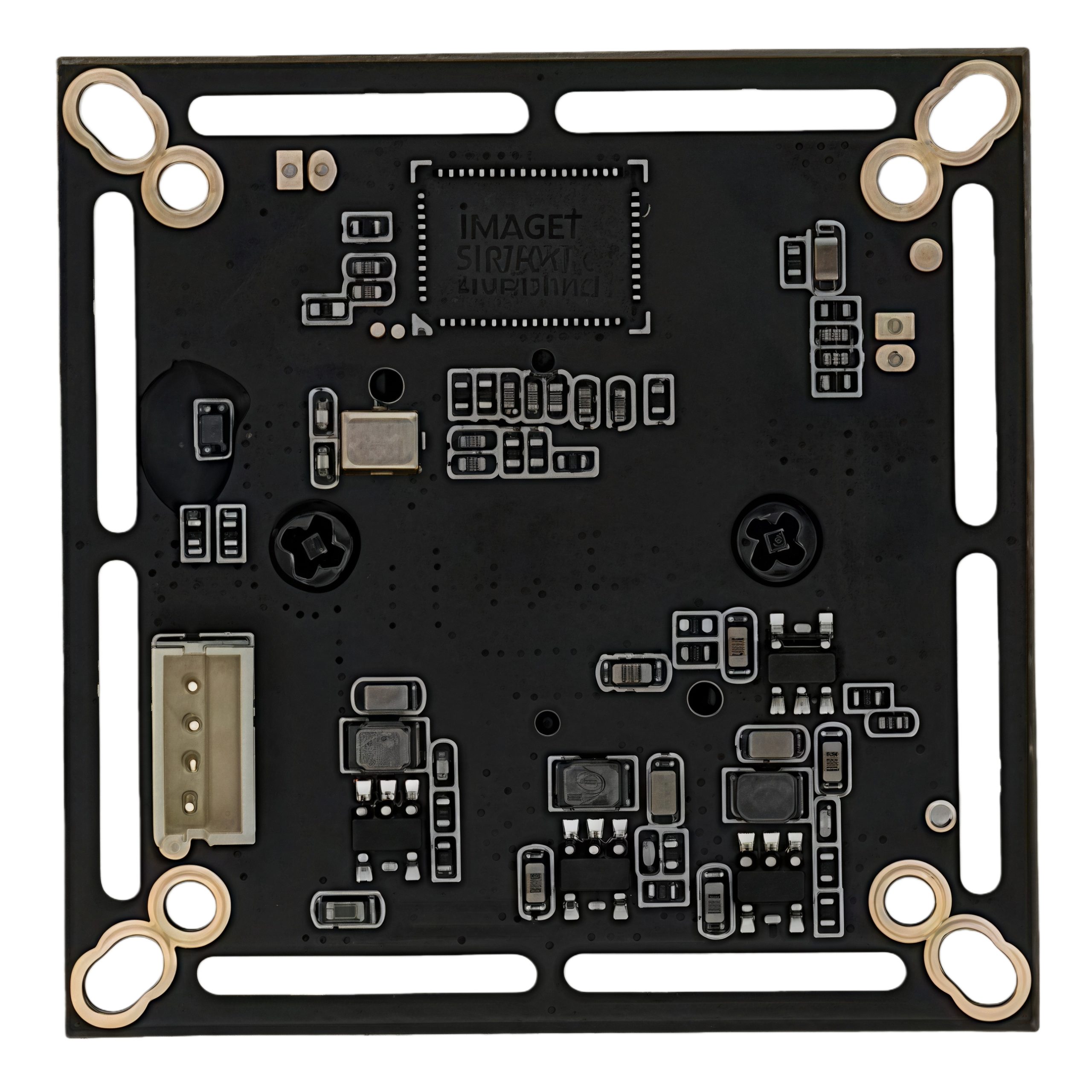

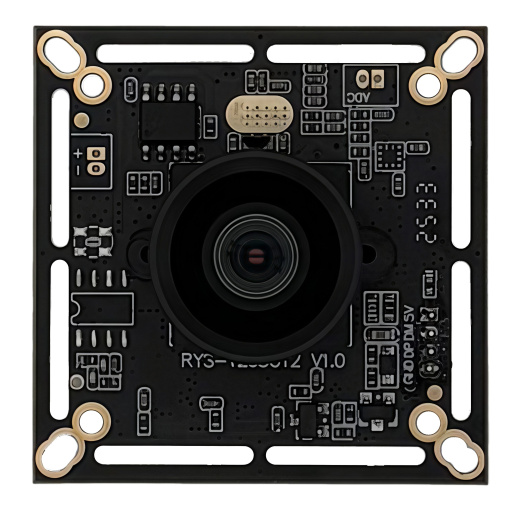

12MP (Sony IMX663): UC120MPA
Price range: $99.00 through $109.00
| Specification | |
| Image Device | 1/2.93’’ CMOS Sony IMX663 |
| Pixel Size | 1.22μm x 1.22μm |
| Resolution | 12 MP 4000(H) X 3000(V) |
| Output Format | MJPEG / YUV2(YUYV) |
| Shutter Type | Electronic rolling shutter |
| Focus | Manually adjustable |
| Focusing Range | 20mm to Infinity |
| Protocol&Connection | Plug-&-Play (UVC compliant) USB 2.0 |
| Frame Rate (Max) | 320X240 QVGA MJPEG @ 30fps YUV2 @30fps |
| 640X480 VGA MJPEG @ 30fps YUV2 @25fps | |
| 800X600 VGA MJPEG @ 30fps YUV2 @15fps | |
| 1280X720 HD MJPEG @ 30fps YUV2 @8fps(960P,NO 720P) | |
| 1600X1200 FHD MJPEG @ 30fps N/A | |
| 1920X1080 FHD MJPEG @ 30fps N/A | |
| 2048X1536 FHD MJPEG @ 30fps N/A | |
| 2592X1944 FHD MJPEG @ 30fps N/A | |
| 3840X2160 FHD MJPEG @ 30fps N/A | |
| 4000X3000 FHD MJPEG @ 10fps N/A | |
| 4032X3024 FHD MJPEG @ 10fps N/A | |
| Min. Illumination | 0.05 Lux |
| WDR | 76 db |
| IR-Cut Filter* | Default at 650nm, custom options at 850nm or 940nm or None |
| Lens* | Default 3.24mm, 5MP, F2.7, 1/2.3” |
| Low-distortion 2.1mm, 8MP, 1/2.8’’, F2.4 | |
| 2.8mm, 8MP, F1.6, 1/2.7’’ | |
| Non-distortion 2.8mm, 5MP, 1/2.5’’, F2.4 | |
| 3.3mm, 16MP, F2.8,1/2.3″ | |
| 4mm, 8MP, F1.6, 1/2.7’’ | |
| Non-distortion 4.2mm, 5MP, 1/2.5’’, F3.2 | |
| IR-Cut Filter Switch* | Available upon request |
| Night Vision | Supported with use of IR lens and IR illuminator |
| IR Illumination* | Default not available, 10pcs 850nm IR LED board can be added upon request |
| Controllable Features | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Contrast, Exposure |
| Power Socket | 4P PH 1.5mm socket, USB BUS Power |
| Cable Length* | Default 1.2M(4ft) (optional 2M, 3M &5M or other custom length upon request) |
| Supported OS | Win XP/Vista/Win7/Win8/Win10
Linux with UVC (linux-2.6.26 or later) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or higher with UVC |
| Windows Application | AMCAP |
| Environmental | |
| Power Consumption | DC5V (±5%), <240mA |
| Operating Temp. | -4°F~185°F (-20°C~+85°C) |
| Storage Temp. | -40°F~185°F (-40°C~+85°C) |
| Humidity | Less than 80% |
| Dimension (in mm)* | 38mmx 38mm (Mount compatible with 32 x 32mm) |
| Weight | Approx. 12Grams or 0.4Ounce |
| Approval | RoHS, CE, FCC |
| Additional feature* | Subject to custom solutions |
| Weight | 8 oz |
|---|---|
| Lens | Non-distortion 3.24mm, Low-distortion 2.1mm, 2.8mm, Non-distortion 2.8mm, 3.3mm, 4mm, Non-distortion 4.2mm |
