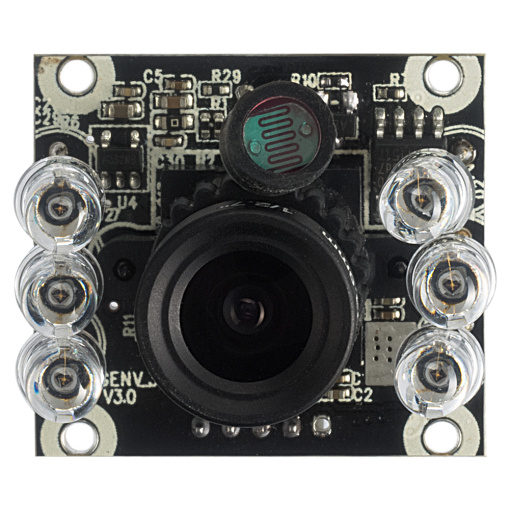

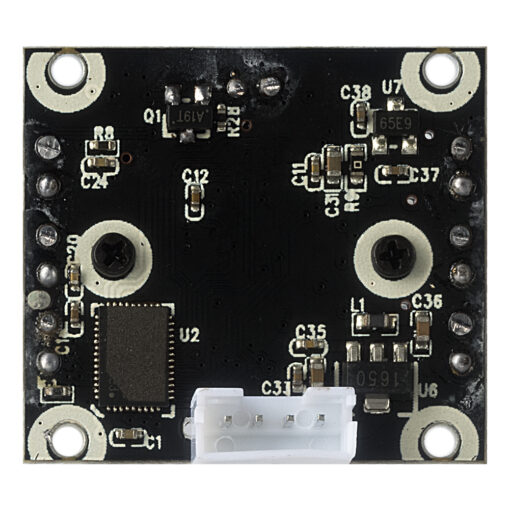

Infrared & Compact (OV2710): UC20MPD
$53.00 – $55.00
2MP resolution with 1/2.7″ CMOS OV2710 image sensor
Built-in infrared 850nm IR LED’s on-board
- Image Device: 1/2.7’’ OV2710
- Pixel Size: 3μm x 3μm
- Resolution: 2MP Full HD 1920(H) X 1080(V)
- Output Format: MJPEG / YUV2（YUYV）
- Shutter Type: Electronic rolling shutter
- Focus: Manually adjustable
- Focusing Range: 20mm to Infinity
- Protocol & Connection: Plug-&-Play (UVC compliant)
- Frame Rate: 1920×1080 MJPEG @30FPS
- Minimum Illumination: 0.05 Lux
- IR-Cut Filter (IR Filter): Default at 850nm, custom option at 940nm
- Lens: 95 degree FOV non-distortion lens
- Night Vision Distance: Supported 3-5 meters
- IR Illumination: Default 6 pcs 850nm infrared LED built-in onboard, can be changed to 940nm/white light LED’s upon request
- Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure
- Power Socket: 4P PH 2.0mm socket, USB BUS Power
- Cable Length: Default 1.2M(4ft) (others upon request)
- Supported OS: Win XP/Vista/Win7/Win8/Win10; Linux with UVC (linux-2.6.26 or later); MAC-OS X 10.4.8 or later; Wince with UVC; Android 4.0 or higher with UVC
- Power Consumption: DC5V (±5%), 140mA
- Operating Temp.: -4°F~167°F (-20°C~+75°C)
- Storage Temp.: -40°F~185°F (-40°C~+85°C)
- Humidity: Less than 80%
- Dimension: 30mm x 27mm
- Weight: Approx. 30 Grams or 1.0 Ounce
| Weight | 6 oz |
|---|---|
| Lens | 2.8mm, non-distortion 3.0mm, 3.6mm, 6mm |
