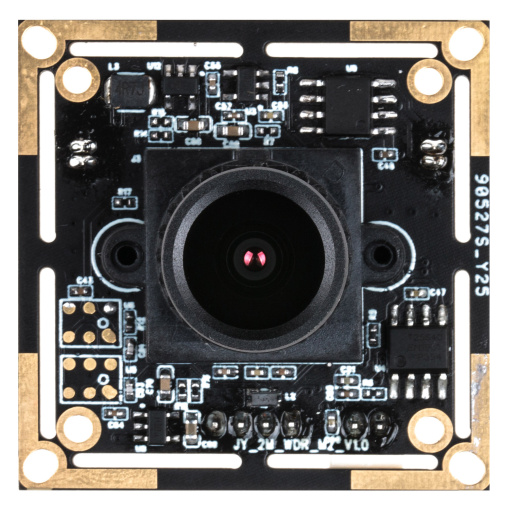

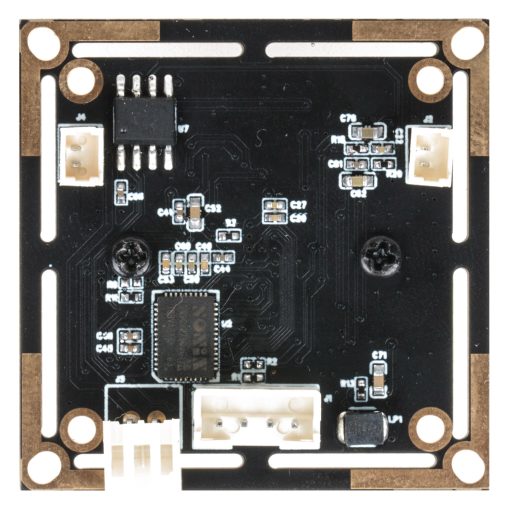

WDR (AR0230): UC20MPF

Image Device: 1/2.7’’ CMOS AR0230 sensor

Pixel Size: 3μm x 3μm

Resolution: 2 MP FULL HD 1920(H) X 1080(V)

Output Format: MJPEG / YUV2（YUYV）

Shutter Type: Electronic rolling shutter

Focus: Manually adjustable

Focusing Range: 20mm to Infinity

Protocol & Connection: Plug-&-Play (UVC compliant)

Frame Rate:

320X180                 MJPEG @30fps                N/A

320X240 QVGA     MJPEG @30fps                N/A

640X360                 MJPEG @30fps                N/A

640X480 VGA        MJPEG @30fps                YUV2 @30fps

800X600 SVGA      MJPEG @30fps                YUV2 @15fps

1024X768               MJPEG @30fps                N/A

1280X720 HD        MJPEG @30fps                YUV2 @5fps

1280X960               MJPEG @30fps                N/A

1920X1080 FHD   MJPEG @30fps                YUV2 @5fps

Minimum Illumination: 0.05 Lux

WDR: 105db

IR-Cut Filter (IR Filter): Default at 650nm, custom options no IR filter or IR-cut filter switch

Lens: M12 3.6mm lens

Night Vision: Supported with use of IR lens and IR illuminator

IR Illumination: Default not available, 850nm/940nm/white light LED plate can be added upon request

Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure

Power Socket: 4P PH 2.0mm socket, USB BUS Power

Cable Length: Default 1.2M(4ft) (others upon request)

Supported OS: Win XP/Vista/Win7/Win8/Win10; Linux with UVC (linux-2.6.26 or later); MAC-OS X 10.4.8 or later; Wince with UVC; Android 4.0 or higher with UVC

Power Consumption: DC5V (±5%), <140 mA

Operating Temp.: -4°F~167°F (-20°C~+75°C)

Storage Temp.: -40°F~185°F (-40°C~+85°C)

Humidity: Less than 80%

Dimension: 38mm x 38mm (Mount compatible with 32mm x 32mm)

Weight: Approx. 12 Grams or 0.4 Ounce
