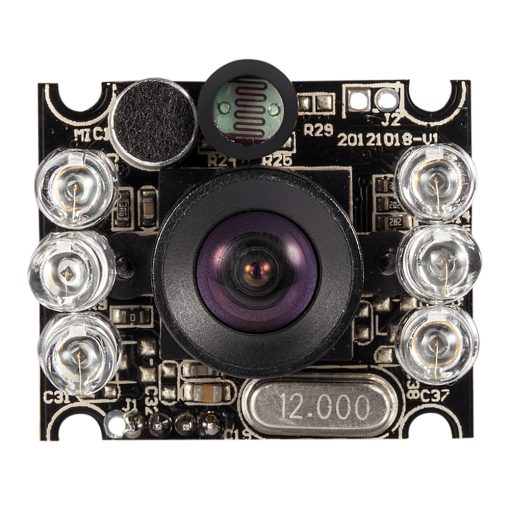

Infrared 720P(ND99141): UC10MPB

Image Device: 1/4’’ CMOS

Pixel Size: 3μm x 3μm

Resolution: 2 MP FULL HD 1280(H) X 720(V)

Output Format: MJPEG / YUV2（YUYV）

Shutter Type: Electronic rolling shutter

Focus: Manually adjustable

Focusing Range: 20mm to Infinity

Protocol & Connection: Plug-&-Play (UVC compliant)

Frame Rate:

320X240          MJPEG @ 30fps             YUV2 @ 30fps

352X288          MJPEG @ 30fps             YUV2 @ 30fps

640X480          MJPEG @ 30fps             YUV2 @ 20fps

800X600          MJPEG @ 30fps             YUV2 @ 30fps

1280X720       MJPEG @ 30fps              YUV2 @ 10fps

Minimum Illumination: 0.05 Lux

IR-Cut Filter (IR Filter): No IR filter

Lens: M12 3.6mm lens

Night Vision: Supported by 6 IR LED’s built-in

IR Illumination: 6 x 850nm IR LED’s built-in on board

Audio: Built-in microphone

Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure

Power Socket: 4P PH 2.0mm socket, USB BUS Power

Cable Length: Default 1.2M(4ft) (others upon request)

Supported OS: Win XP/Vista/Win7/Win8/Win10; Linux with UVC (linux-2.6.26 or later); MAC-OS X 10.4.8 or later; Wince with UVC; Android 4.0 or higher with UVC

Power Consumption: DC5V (±5%), 150~200 mA

Operating Temp.: -4°F~158°F (-20°C~+70°C)

Storage Temp.: -40°F~185°F (-40°C~+85°C)

Humidity: Less than 80%

Dimension: 30mm x 25mm

Weight: Approx. 9 Grams or 0.3 Ounce
