WDR & High Frame Rate: UC50MPD
Price range: $74.00 through $79.00

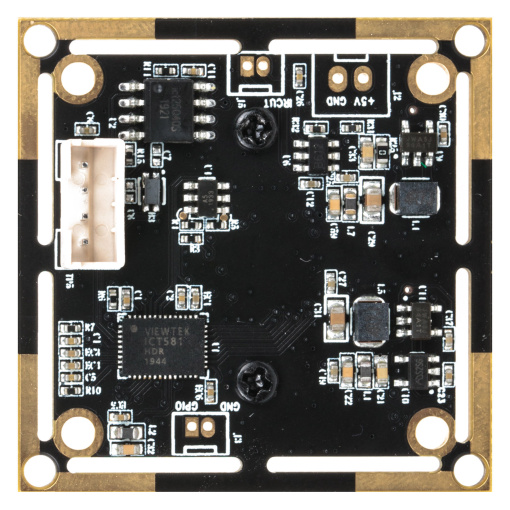

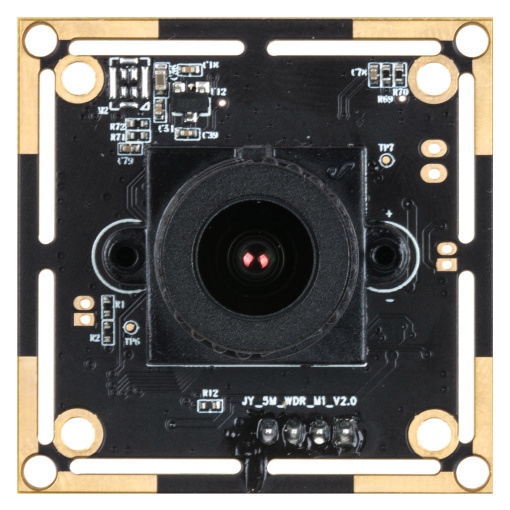

5 MP WDR USB camera board MJPEG & YUV2 streaming 2592×1944 up to 30fps WDR @120db
- Image Device: 1/2.5’’ CMOS
- Pixel Size: 2.2μm x 2.2μm
- Resolution: 5MP 2592(H) X 1944(V)
- Output Format: MJPEG / YUV2（YUYV）
- Shutter Type: Electronic rolling shutter
- Focus: Manually adjustable
- Focusing Range: 20mm to Infinity
- Protocol & Connection: Plug-&-Play (UVC compliant)
- Frame Rate Max: 2592×1944 MJPEG @30FPS
- Minimum Illumination: 0.2 Lux
- IR-Cut Filter (IR Filter): Default at 650nm, custom option at 850nm or 940nm or None
- Lens: M12 4mm
- WDR: 120db
- Night Vision: Supported with use of IR Lens and IR illuminator
- IR Illumination: Default not available, 12 or 24pcs 850nm LED plate can be added upon request
- Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure
- Power Socket: 4 PH 2.0mm socket, USB BUS Power
- Cable Length: Default 1.2M(4ft) (others upon request)
- Supported OS: Win XP/Vista/Win7/Win8/Win10; Linux with UVC (linux-2.6.26 or later); MAC-OS X 10.4.8 or later; Wince with UVC; Android 4.0 or higher with UVC
- Power Consumption: DC5V (±5%), 140mA (±10%)
- Operating Temp.: -4°F~167°F (-20°C~+75°C)
- Storage Temp.: -40°F~185°F (-40°C~+85°C)
- Humidity: Less than 80%
- Dimension: 38mmx 38mm
- Weight: Approx. 12 Grams or 0.4 Ounce
| Weight | 8 oz |
|---|---|
| Lens | Fisheye 1.55mm, 2.1mm, 2.8mm, non-distortion 2.8mm, 4mm, non-distortion 3.6mm, non-distortion 4.2mm, 6mm, 8mm, 12mm, 16mm, 25mm |
