High Frame Rate & Low Light: UC80MPD

High Frame Rate & Low Light: UC80MPD

    • 8 MP Resolution with 1/2.8" SONY IMX415 image sensor
    • USB 2.0 compliance, Plug & Play – UVC compliant
    • High frame rate, low light and WDR
    • MJPEG& YUV2 streaming, supports 3840x2160 up to 30fps
    • Unique serial number assigned upon request
    • Fully customizable


Overview


P/N Type Interface Resolution Max. FPS Max. Sensor Description Shutter Special Features Purchase
UC03MPA Color USB 2.0 640 x 480 (0.3MP) 60 fps 1/4'', CMOS OV7725, 6µm Rolling Compact Online
UC03MPB Color USB 2.0 640 x 480 (0.3MP) 60 fps 1/5'', CMOS OV7740, 4.2µm Rolling WDR Online
UC03MPC Color USB 2.0 640 x 480 (0.3MP) 60 fps 1/5'', CMOS OV7740, 4.2µm Rolling Minature;  WDR Online
UC03MPD Color USB 2.0 640 x 480 (0.3MP) 60 fps 1/4'', CMOS MK0806,  6µm Rolling Low light, IR built-in Online
UC10MPA Color USB 2.0 1280 x 720 (1MP) 30 fps 1/4'', CMOS NT99141,  3µm Rolling N/A Online
UC10MPB Color USB 2.0 1280 x 720 (1MP) 30 fps 1/4'', CMOS NT99141,  3µm Rolling Compact, IR built-in Online
UC10MPC Mono USB 2.0 1280 x 720 (1MP) 120 fps 1/4'', CMOS OV9281,  3µm Global Global shutter, Monochrome Online
UC13MPA Color USB 2.0 1280 x 960 (1.3MP) 15 fps 1/3'', CMOS AR0130,  3.75µm Rolling WDR Online
UC20MPB Color USB 2.0 1920 x 1080 (2MP) 30 fps 1/2.7'', CMOS OV2710,  3µm Rolling Low light Online
UC20MPD Color USB 2.0 1920 x 1080 (2MP) 30 fps 1/2.7'', CMOS OV2710,  3µm Rolling Compact, IR built-in Online
UC20MPE Color USB 2.0 1920 x 1080 (2MP) 30 fps 1/2.7'', CMOS HM2131,  3µm Rolling Ultra low light; or HDR Online
UC20MPF Color USB 2.0 1920 x 1080 (2MP) 30 fps 1/2.7'', CMOS AR0230,  3µm Rolling WDR 105dB Online
UC20MPG Color USB 2.0 1920 x 1080 (2MP) 30 fps 1/2.8'', CMOS IMX290,  2.9µm Rolling Low light & WDR Online
UC20MPH Color USB 2.0 1920 x 1080 (2MP) 60 fps 1/4'', CMOS OV2732,  2µm Rolling High frame rate 2MP @60fps Online
UC50MPA Color USB 2.0 2592 x 1944 (5MP) 15 fps 1/4'', CMOS OV5640,  1.4µm Rolling Low cost, auto-focus available Online
UC50MPB Color USB 2.0 2592 x 1944 (5MP) 15 fps 1/2.5'', CMOS MT9P001,  2.2µm Rolling High image quality Online
UC50MPC Color USB 2.0 2592 x 1944 (5MP) 30 fps 1/2.7'', CMOS OS05A10,  2µm Rolling High frame rate 5MP @30fps Request
UC50MPD Color USB 2.0 2592 x 1944 (5MP) 30 fps 1/2.5'', CMOS, 2.2µm Rolling WDR 120db, 5MP @30fps Online
UC80MPA Color USB 2.0 3264 x 2448 (8MP) 15 fps 1/3.2'', CMOS IMX179,  1.4µm Rolling 650nm IR filter built-in Online
UC80MPB Color USB 2.0 3264 x 2448 (8MP) 15 fps 1/3.2'', CMOS IMX179,  1.4µm Rolling Auto-focus Online
UC80MPC Color USB 2.0 3264 x 2448 (8MP) 15 fps 1/3.2'', CMOS IMX179,  1.4µm Rolling Dual-lens, panaromic 360 degree Request
UC80MPD Color USB 2.0 3840 x 2160 (8.3MP) 30 fps 1/2.8'', CMOS IMX415,  1.45µm Rolling High frame rate, low light Online
UC130MPA Color USB 2.0 4192x3104 (13MP) 8 fps 1/3.06'', CMOS IMX214,  1.12µm Rolling Fixed focus & Auto focus Online


Specification

Options Standard Custom Options
Image Sensor 1/2.8" Sony IMX415 ----------
Pixel Size 1.45um x 1.45um ----------
Resolution 8.3 MP 3840(H) x 2160 (V) ----------
Shutter Type Electronic rolling shutter ----------
Protocol & Connection Plug-&-Play (UVC compliant) ----------
Frame Rate 320X240 MJPEG @30fps YUV2 @30fps 640X480 MJPEG @30fps YUV2 @30fps 800X600 MJPEG @30fps YUV2 @30fps 1280X720 MJPEG @25fps YUV2 @10fps 1280X960 MJPEG @30fps YUV2 @ 5fps 1600X1200 MJPEG @30fps YUV2 @ 5fps 1920X1080 MJPEG @30fps YUV2 @ 5fps 2048x1536 MJPEG @30fps YUV2 @ 3fps 2592x1944 MJPEG @30fps YUV2 @ 1fps 3840x2160 MJPEG @30fps YUV2 @ 1fps ----------
Focus Manually adjustable ----------
Lens Default 4mm lens 2.1mm, 2.8mm, 6mm, 8mm, 12mm, 16mm, 25mm, 2.3mm low distortion 120 degree, and 4.7mm non-distortion 70 degree lens, 185 Degree Fisheye Lens, CS lens and others upon request
Minimum Illumination 0.01 Lux ----------
IR-Cut Filter (IR Filter) Default at 650nm ----------
Night Vision Supported with the use of LED’s ----------
Power Supply 4P PH 2.0mm socket, USB BUS Power ----------
Supported OS Win XP /Vista /Win7 /Win8 /Win10 Linux with UVC (Linux-2.6.26 or later) Wince with UVC Android 4.0 or higher with UVC ----------
Controllable Features Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight contrast, Exposure ----------
Power Consumption DC5V (±5%), <330mA ----------
Operating Temp. -22°F ~ 185°F (-30°C ~ +85°C) ----------
Storage Temp. -40°F ~ 185°F (-40°C ~ +85°C) ----------
Dimension 38mm x 38mm ----------
Weight Approx. 12g (0.4 Ounce) ----------
WDR 70dB ----------

Download

Examples

Photos

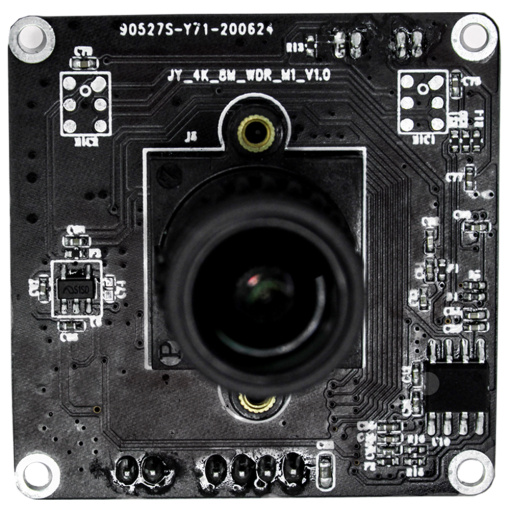

High Frame Rate & Low Light: UC80MPD
