| Resolution: | 3MP |
| Image Format: | 1/2.5″ |
| Focal length (mm): | 12mm |
| Aperture: | F1.6 |
| Mount Type: | S mount/M12 x 0.5 |
| Focus range: | 30cm~INF |
| Field of View (FOV): | |
| IMX290: D36° x H16° x D15° | |
| OV4689 IMX322: D25° x H22° x D12° |
|
| AR0130 IMX225: D28° x H23° x D17° |
|
| IR-cut Filter: | / |
| TV distortion: | -1.9% (1/2.5” Full) |
| Total Track Length(TTL): | 22.9mm(in air) |
| Back focal length: | 6.6mm(in air) |
| Dimension (mm): | Φ 14×16.3mm |
| Structure: | 4 groups, 5 elements |
| Weight (g): | 6g |
| Operating Temp.: | -20°C~+60°C |
| Focus: | Manual |
| Zoom: | Fixed |
| IRIS: | Fixed |

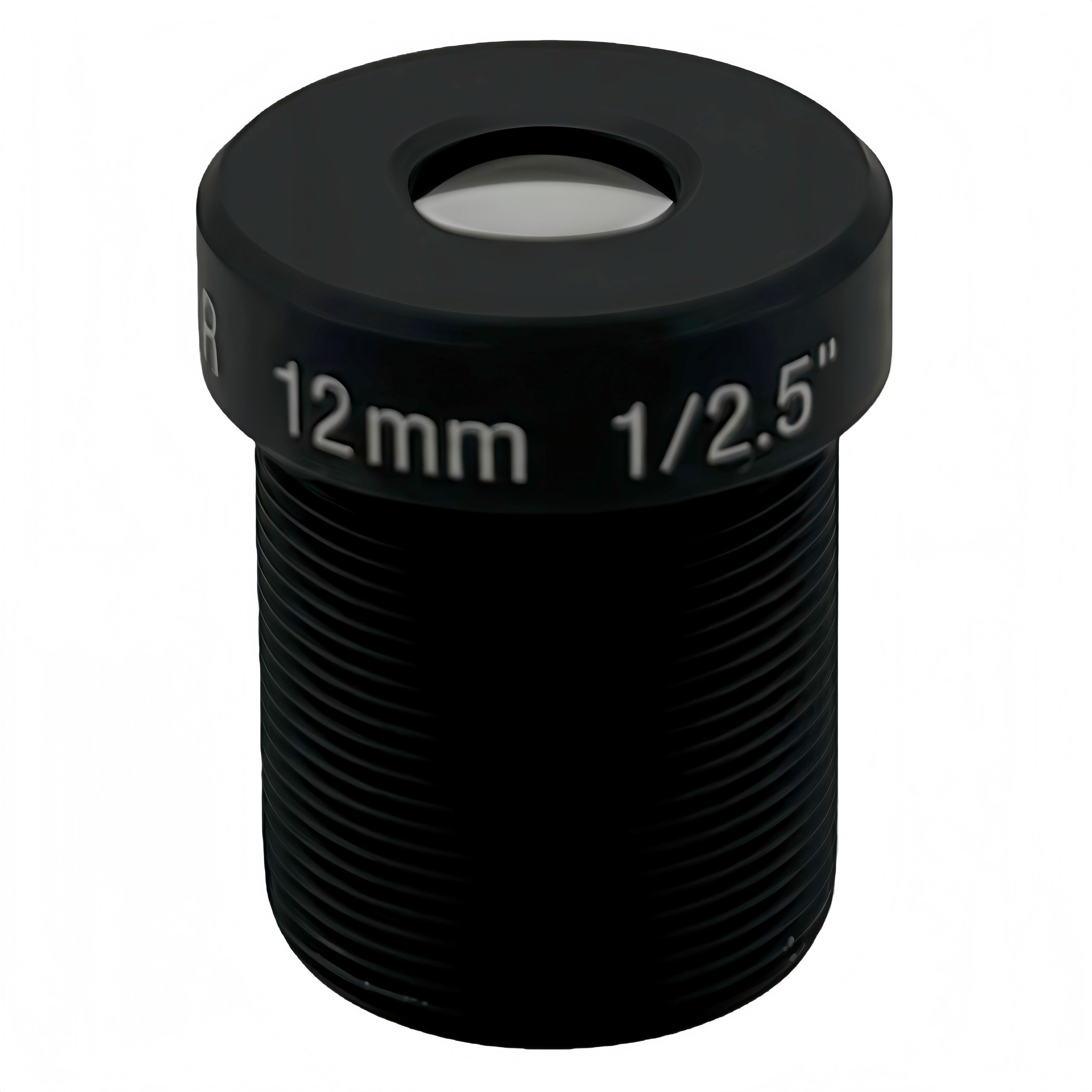

M12/S Mount,12mm, 3MP, F1.6, 1/2.5”, no IR-cut filter
$18.00
M12/S Mount,12mm, 3MP, F1.6, 1/2.5”, no IR-cut filter
In stock
| Weight | 4 oz |
|---|---|
| IR CUT Filter | 650nm, NO IR filter |
